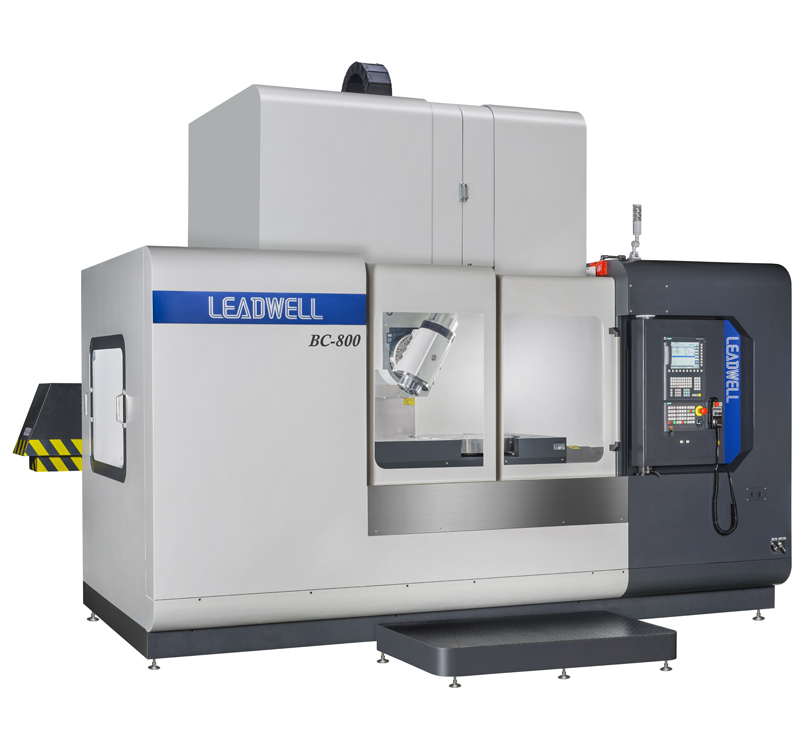

High Rigidity:
*FEA Analysis
*Rigid structure design
*Dual nuts ball screw design in X/Y axis
*Rotary table use DD motor
*Roller type guide way (X/Y/Z axis)
*Embedded rotary table design
High Reliability:
*Roller type motion system
*Ball screw bearing lubrication system design
*Dual chip auger
*Three axis optical scale
*Rotary table compensaion adjustment system
*Dynamic collision monitoring system
*Moveable ATC design
High Efficiency:
*Rapid feed rate 36/36/30 mm
*Spindle speed 15,000 rpm
*5 axis machining simultaneously
X axis travel |
mm (in) |
2040(80.3) - 1100(43) |
Y axis travel |
mm (in) |
1000(40) - 610(24) |
Z axis travel (Vertical/Horizontal) |
mm (in) |
820/948 (32.2/37.3) - 650/790 (25.6/31) |
Table size (LxW) |
mm (in) |
2,100x1000 (72.7x40) - 1,280x610 (50x24) |
Spindle speeds |
rpm |
15,000/12,000 |
Spindle motor (30min) |
kw (HP) |
18.5(24.8) |
C axis |
Rpm |
120/800 |
Tool storage capacity |
Pcs |
30 |
