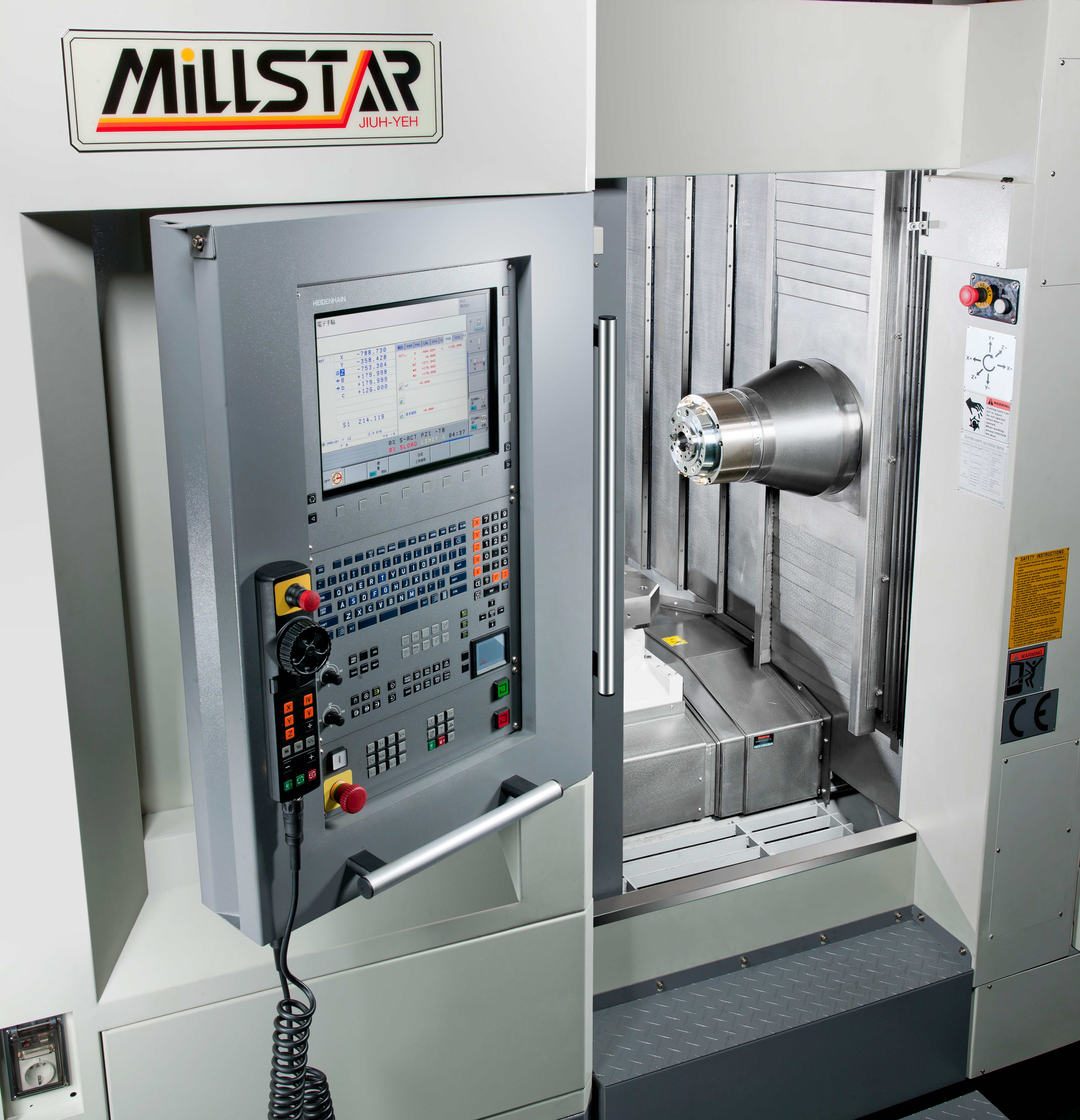

| Application: |
- High accuracy. - Faces can be rotated for machining and 4-axis simultaneous machining. - Can process all operations simultaneously with only one setup. - Quick workpiece setup (2 synchronized pallet change ) |
| Specifications |
| Travel |
- X axis travel: 800 mm. - Y axis travel: 725 mm. - Z axis travel: 725 mm. - Spindle center to table surface: 50-775 mm. - Spindle nose to table center: 150-875 mm. |
| Table |
- Table surface to floor: 1100 mm. - Table size: 500x500 mm (2 pcs). - T - slot / Bolt Spec: 24~M16xP2.0. - Max. loading: 500 kg. - Divide angle: 1° (OPT 0.001°). |
| Spindle |
- Spindle taper: BT-40. - Method of spindle: DDS. - Spindle diameter: Ø70 mm. - Spindle speed: 10000 rpm. |
| Feedrate |
- Spindle motor (cont / 30 min): 15 / 18.5 kW. - 3 - axes cutting feedrate: 1 ~ 10000. - 3 - axes rapid feedrate: 30 ( 36 opt. ) m/min. |
| ATC |
- 3 - axes min. setting unit: 0.001 mm. - Tool selection: 40 ( 60 opt. ). - Max. tool diameter x length: Ø85 x 300 mm. - Max. tool weight: 10 kg. - Tool shank: P40T -1. - Tool change time ( t - t ): 1.6s ( 60 HZ ). |
| APC |

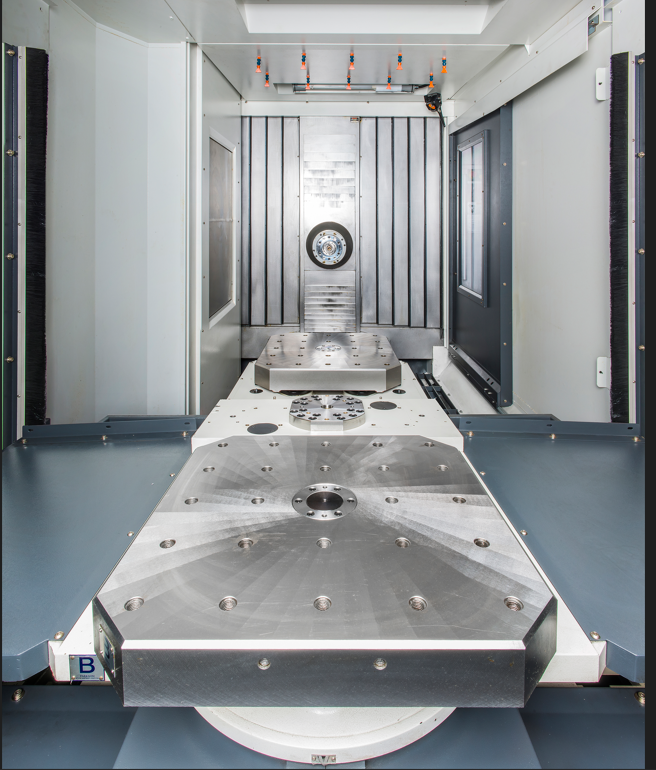

- Number of table: 2 pcs. - Method of table change: ROTARY. - Table change time: 8s. |
| Machine |
- Floor space ( L x W x H ): 4835x3227x2957 mm. - Machine weight ( N.W / G.W ): 13500/16500 kg. - Power capacity require: 40 KVA. - Controller: Fanuc or Mitsubishi. |
Note: "*"means optional, "N/A"means not available.
| Standard Accessories |
- Mitsubishi or Fanuc control. - Rotary type automatic table changer. - 1˚ indexing rotary table. - 40 tools chain type ATC. - BT-40; 10,000 rpm Direct drive. - Rigid roller type linear guide way system. - Spindle curtain coolant. - Spindle oil cooler. - Heat exchanger for electrical cabinet. - 3 areas powerful chip flushing system. - Automatic lubrication system. - Fully enclosed splash guard. - Chain type chip conveyor with cart. - Leveling bolts and pads. - Tool box with tools. - Operation and maintenance manual. - Transformer (Export only) |
| Optional Accessories |
- 0.001° or 5" indexing rotary table. - 60,90,120 tools chain type magazine. - BT-40, 10,000~24,000 rpm direct drive. - Coolant through spindle (CTS-20/30/50/70 bar). - 3 axes linear scales. - Oil skimmer. - Air conditioner for electrical cabinet. - Automatic tool length measuring device. - Automatic workpiece measuring device. - Coolant through tool holder 20/50 bar (without tool holder). - CE Standard. - SIEMENS,HEIDENHAIN,FAGOR controller. - Pallet automation system (Flexible Manufacture System). - High torque Gear box. - Ball screw coolant system (JMH-630/JMH-800/JMH-1000 std). |
