| Application: |
- High accuracy. - Faces can be rotated for machining and 4-axis simultaneous machining. - Can process all operations simultaneously with only one setup. - Quick workpiece setup (2 synchronized bàn change ) |
| Specifications |
| Travel |
- X axis travel: 1020 mm. - Y axis travel: 850 mm. - Z axis travel: 890 mm. - Spindle center to table surface: 70-920 mm. - Spindle nose to table center: 200-1090 mm. |
| Table |
- Table surface to floor: 1300 mm. - Table size: 630x630 mm (2 pcs). - T - slot / Bolt Spec: 24~M16xP2.0. - Max. loading: 1200 kg. - Divide angle: 1° (OPT 0.001°). |
| Spindle |
- Spindle taper: BT-50. - Method of spindle: Gear Head. - Spindle diameter: Ø100 mm. - Spindle speed: 6000 rpm. |
| Feedrate |
- Spindle motor (cont / 30 min): 15 / 18.5 kW. - 3 - axes cutting feedrate: 1 ~ 6000 mm/min. - 3 - axes rapid feedrate: 24 ( 30 opt. ) m/min. |
| ATC |
- 3 - axes min. setting unit: 0.001 mm. - Tool selection: 40 ( 60 opt. ). - Max. tool diameter x length: Ø125 x 500 mm. - Max. tool weight: 20 kg. - Tool shank: P50T -1. - Tool change time ( t - t ): 2.9s ( 60 HZ ). |

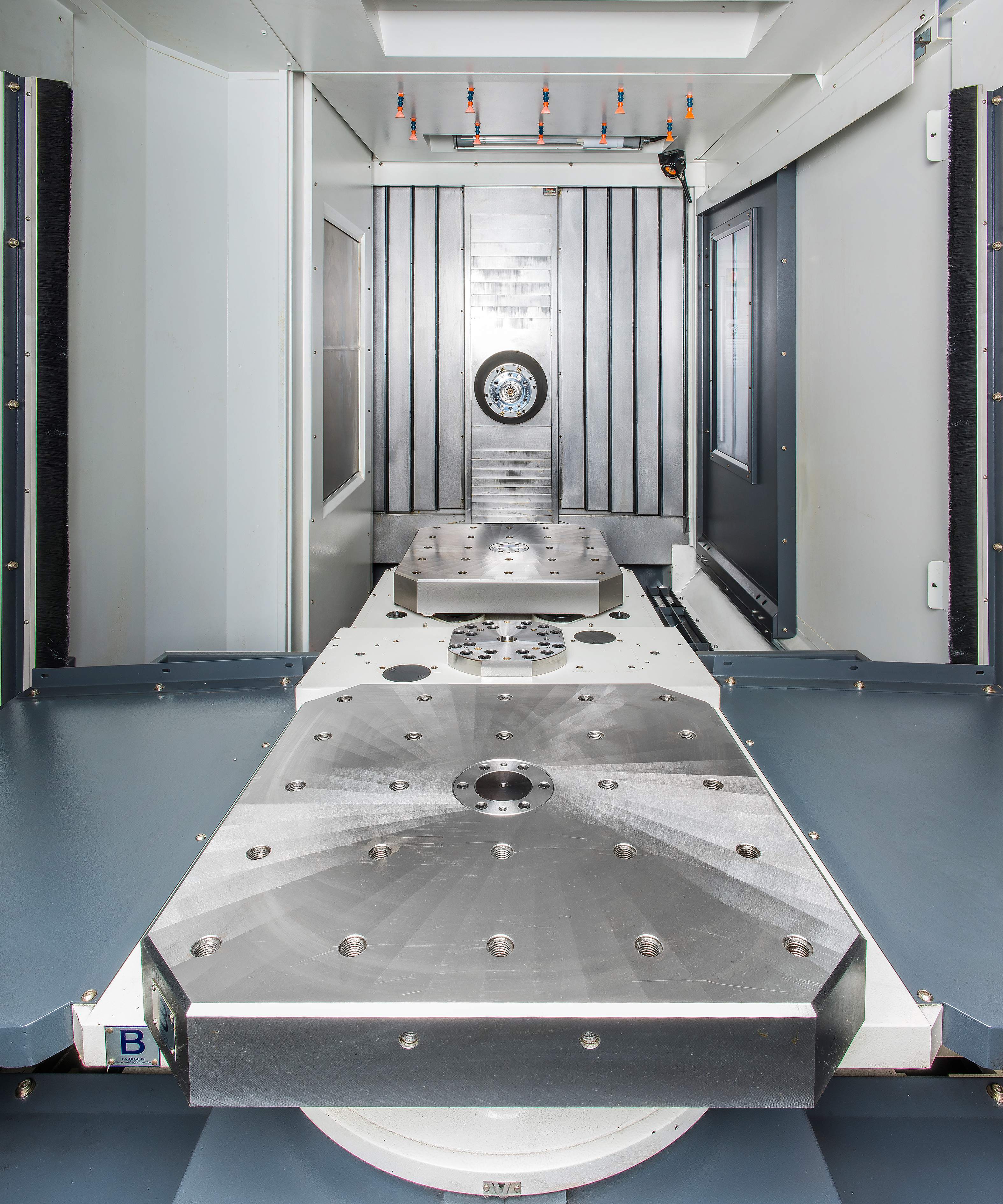

| APC |
- Number of table: 2 pcs. - Method of table change: ROTARY . - Table change time: 10s |
| Machine |
- Floor space ( L x W x H ): 6664x4175x3632 mm. - Machine weight ( N.W / G.W ): 27000/31000 kg. - Power capacity require: 50 KVA. - Controller: Fanuc or Mitsubishi. |
Note: "*"means optional, "N/A"means not available.
| Standard Accessories |
- Mitsubishi or Fanuc control. - Rotary type automatic bàn changer. - 1˚ indexing rotary table. - BT-50; 6,000 rpm Japan Gear head. - Rigid roller type linear guide way system. - Spindle curtain coolant. - Spindle oil cooler. - Heat exchanger for electrical cabinet. - 3 areas powerful chip flushing system. - Automatic lubrication system. - Fully enclosed splash guard. - Chain type chip conveyor with cart. - Leveling bolts and pads. - Tool box with tools. - Operation and maintenance manual. - Transformer (Export only) |
| Optional Accessories |
- 0.001° or 5" indexing rotary table. - 60,90,120 Tools chain type magazine. - BT-50, 8000 or 10000 rpm direct drive. - Coolant through spindle (CTS-20/30/50/70 bar). - 3 Axes linear scales. - Oil skimmer. - Air conditioner for electrical cabinet. - Automatic tool length measuring device. - Automatic workpiece measuring device. - Coolant through tool holder 20/50 bar (without tool holder). - CE Standard. - SIEMENS,HEIDENHAIN,FAGOR controller. - Pallet automation system (Flexible Manufacture System). - High torque Gear box. - Ball screw coolant system (JMH-630/JMH-800/JMH-1000 std). |
